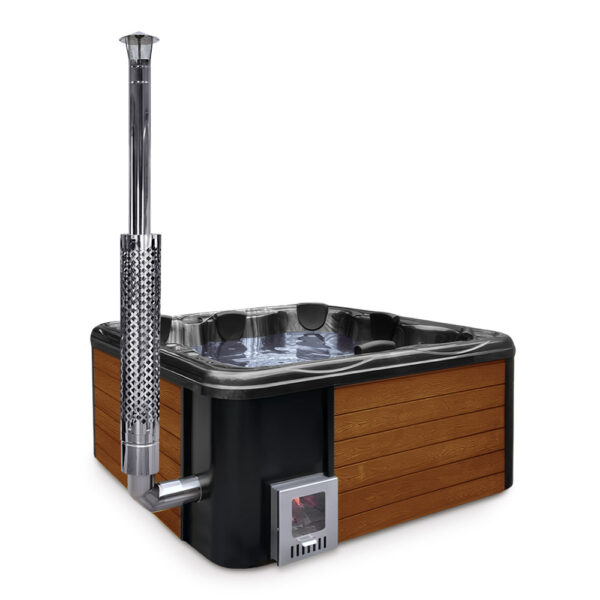

Quattro Lounge Select Hot Tub

£ 8,535 £ 6,980

All-inclusive package

The starting price includes the following:

  • Hot tub with acrylic insert for 6 persons – 5 seats and 1 laying position (£4900)
  • Thermowood cladding (£450)
  • Integrated heater (stainless steel 304) with chimney flue, 2 m (6’6”) (£550)
  • Thermal insulation (£150)
  • Standard steps (£110)
  • Chimney flue heat guard & elbow heat guard (£145)
  • Chimney cap with ash catcher (£40)
  • Facade LED lights (corners) (£200)
  • Electric fuse box (£200)
  • Hose fittings (£20)
  • Connection valves for sand filter (£200)
  • High-flow drain tap (£70)
  • 15 x mini LED (£300)
  • 12 x hydro jets 1.1 KW (£650)
  • 12 x air jets 0,7 KW (£550)

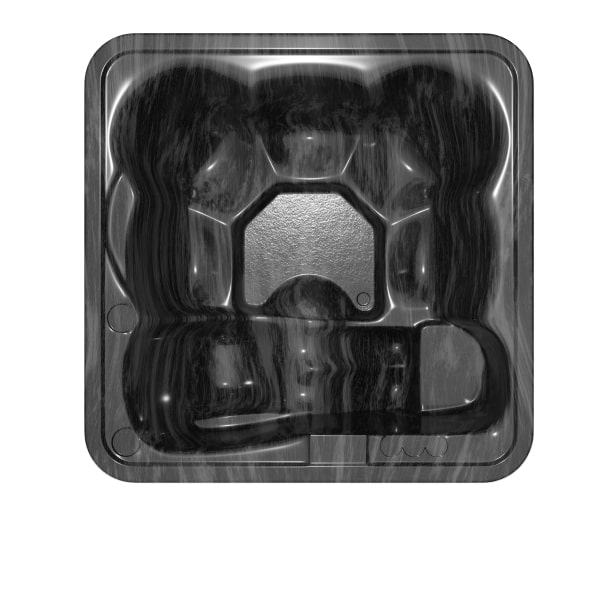

    Select cladding and liner colours

    Select heater steel type

    SPA systems

    Select water filtration, purification

    • Fibre-ball filtration system (£410)
    • ThermoWood box enclosure (£140):
      582 (L) x 600 (W) x 700 (H) mm

    • Fibre-ball filtration system (£410)
    • ThermoWood box enclosure (£140):
      582 (L) x 600 (W) x 700 (H) mm
    • Blue Lagoon UV-C water purification system (£400)

    Select accessories

Product specifications

Product technical data

External dimensions (L x W x H): 2200 x 2200 x 1100 mm
Internal dimensions (L x W x H): 1700 x 1700x 830 mm
Square stairs (L x W x H): 690 x 760 x 500 mm

Electricity supply

Power: 220-240 V, AC 50 / 60 Hz.
Max. electrical load up to 32 amps, depending on configuration.

Water supply

Capacity: 1200-1300 L (264-286 gal).

Diameter of water drain valve: 25.4 mm.

Product base size

Minimum base size: 3000 x 3000 mm, with filter: 3000 x 3500 mm
Recommended base size: 3800 x 3800 mm, with filter: 4000x 4000 mm

Delivery-related technical data

Package type:  2 euro pallets 1200 x 800 mm (47.2 x 31.5 in).
Package weight: 300-450 kg  depending on the choice of package and accessories.
Package dimensions (L x W x H) +-100 mm (3.9 in) on each dimension:  2200 x 2200 x 1100 mm Filter box package: 580 x 600 x 700 mm

Heater type and fuel

Main heater material: food grade stainless steel AISI Grade 304 or 316.
Heater fuel: dry softwood or a mix of softwood and hardwood in equal amounts.
Heating time: 1–2 hours in summer, 2–3 hours in winter.
Heater rated heating output: 30 kW.

Safety Warning

Children must be supervised by an adult at all times when using a hot tub. Please read and follow all the safety instructions included.
